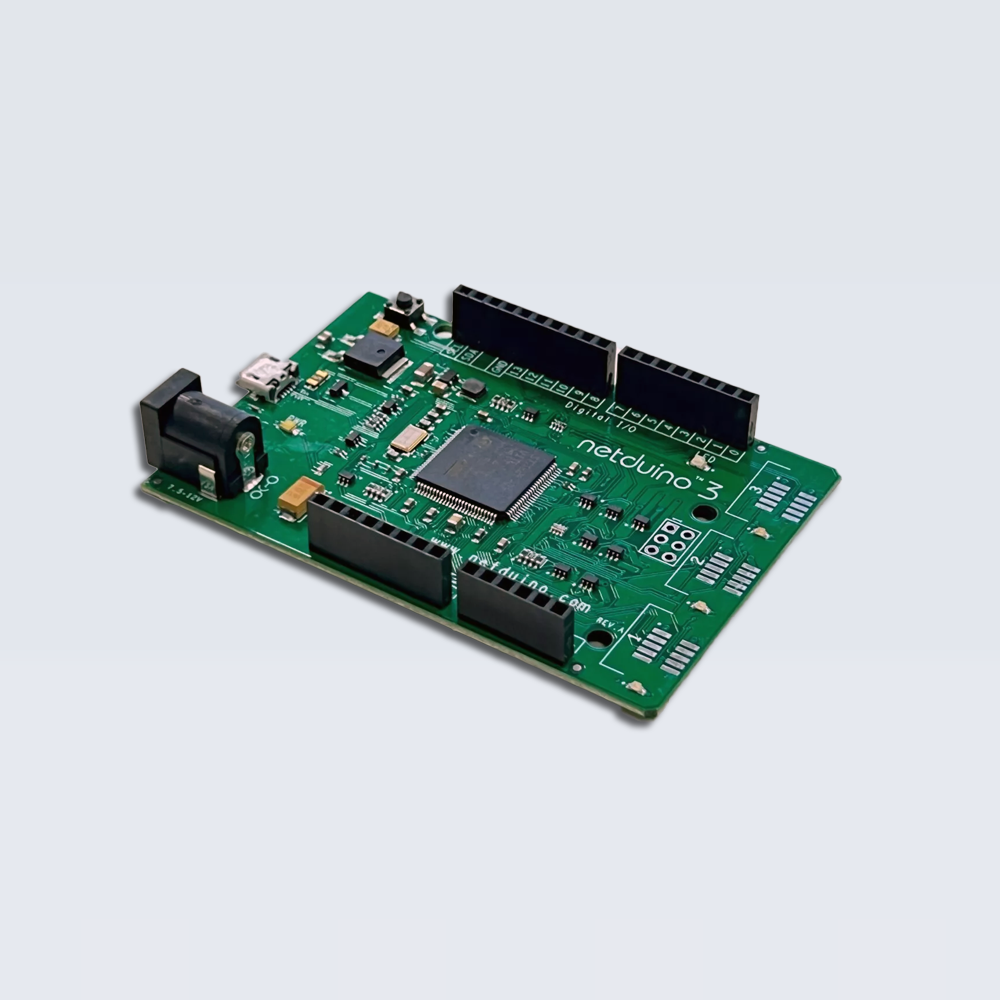

NETduino 3 Development Board

Netduino is an open source electronics platform using the .NET Micro Framework. Featuring a 32-bit microcontroller and a rich development environment, it is suitable for engineers and hobbyists alike. This combines the ease of high-level coding and the raw features of microcontrollers. Enjoy event-based programming, multi-threading, line-by-line debugging, breakpoints and more!

The Netduino 3 has the same 168 MHz (Cortex-M4) processor as the Netduino 2 but almost four times the code storage at 1408 KB and almost double the ram at 164+ KB.  Check out the full specs here and more information about Netduino over at netduino.com

Features include:

• Works with most arduino shields (some require .net mf drivers)
• 1408KB code storage
• 164KB RAM
• 6 ADC channels (12-bit)

• Operating Temperature: 0° - 70°C
• Power:
• Input: 7.5-12 VDC or USB powered
• Output: 5 VDC and 3.3 VDC regulated

Product Dimensions: 79.5mm x 53.3mm x 12.3mm / 3.1" x 2.1" x 0.5"
Product Weight: 28.0g / 1.0oz


NETDUINO 3 Product Variation Note

The following parts are not included on the board:

-J10, J11, J12: These GoPort connectors allow for connection of peripheral modules. The connectors are not included but the footprint remains.

-D4: This TVS diode aids in voltage regulation and ESD protection on the Micro-B USB Connector but is not included on this board.

-These Boards are based on open-source designs. Some original components have been substituted due to market availability.
