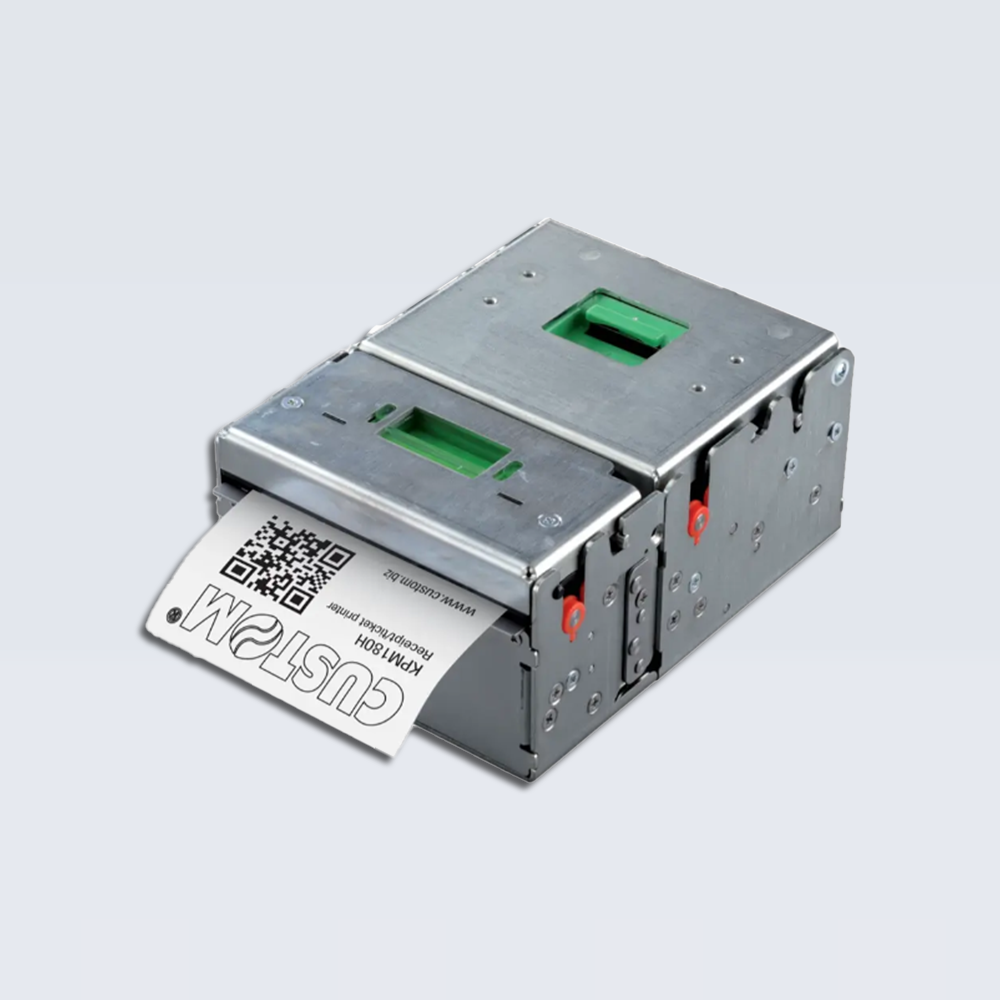

Custom - Compact thermal ticket printer for OEM integration KPM180H

Custom - Compact thermal ticket printer for OEM integration KPM180H

Regular price $1,400.00 AUD
Regular price $1,675.00 AUD Sale price $1,400.00 AUD
Sale Sold out

Industrial Thermal Ticket Printer

  • Best print quality (200dpi or 300dpi)
  • Adjustable paper width: from 20mm to 82.5mm
  • Paper thickness: from 70 to 255 gr/m2
  • Paper roll or fan fold tickets
  • Printing > 200 mm/s
  • Tear off or cutter (1Ml cuts) with optional dispenser
  • Label processing (tear off and cutter)
  • Print head life: 100Km
  • 1D and 2D barcode printing: UPC-A, UPC-E, EAN13,EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32, PDF417, DATAMATRIX, AZTEC, QRCODE
  • RS232 / USB (or Virtual COM) / Ethernet interfaces
  • Drag&drop for graphics and logos
  • True Font character support; Font: any language available
  • Sensors: Head temperature, paper presence, mobile detectors of black mark or translucent gap/hole (setting by software), cover open, external low paper

Characteristics

  • The smallest printer on the market!
  • Powerful processor inside (2MB flash)
  • Hot swap function
  • Automatic ticket ejector (optional)
  • SNAP-IN power supply connector and ON/OFF button
  • Back connections, feed and print buttons, both at the front and back

Applications

  • Coupon/voucher printing
  • Boarding pass and luggage tag printer (AEA)
  • Parking tickets
  • Metro and bus tickets
  • Self service ticketing
  • Theme parks ticketing
  • Healthcare wristband printing
  • Label printing

Accessories

The ejector found in the cutter optional module may be programmed in two modes. This makes the printer extremely flexible in terms of compatibility, and easy to integrate in any kiosk:

  • Cut and hold => the ticket is held after cutting, until the user collects it. This function is recommended for installations where the printer is directly connected to the outside of the kiosk.
  • Cut and drop => in kiosks equipped with ticket outlet chute, the ejector can be programmed so as to eject the ticket and drop it. It should be assured that the ticket is delivered to the customer and does not remain inside the kiosk.


Wi-Fi or Bluetooth module available

What is in the box:
Device, paper block guide, external low paper sensor with cable, reducer for paper width

Product features
